Main Features:
7kW Fast Charging
Thirteen Levels of Safety Protection
LED Display
National Standard Certified
IP55 Dust and Water Resistant
Detailed Specifications:

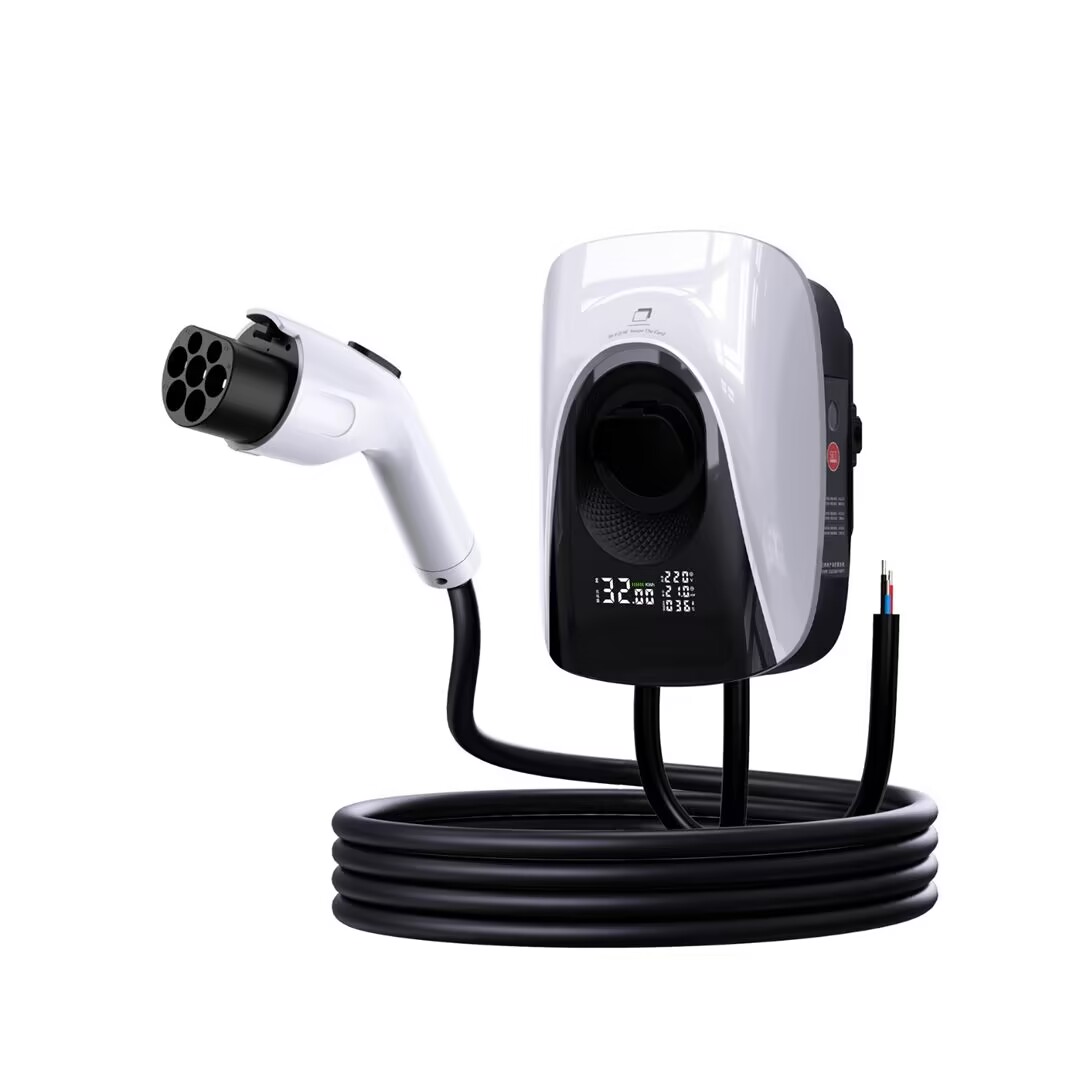

Model: CN-AC-Z112
Rated Power: 7kW
Rated Input Voltage: AC 220V
Rated Input Frequency: 50-60Hz
Rated Output Current: 32A
Rated Output Voltage: AC 220V
Standby Power Consumption: 0W
Display Type: LED Display
Protection Functions: Relay Sticking Protection, AC Leakage Protection, Leakage Protection, Undervoltage Protection, Overvoltage Protection, Overcurrent Protection, Overload Protection, Short Circuit Protection, Lightning Protection, Overtemperature Protection, Undertemperature Protection Grounding, Other
Protection Rating: IP55
Operating Temperature: -20℃ ~ +55℃
Housing Material: Flame-Retardant ABS
Compliance Standard: National Standard GB/T 18487
Dimensions: 320*210*90mm
Exterior Color: White
Power Supply: AC
Installation Type: Wall Mount
Compatible Vehicles: Pure Electric and Plug-in Hybrid Vehicles with GB Standard Connectors
